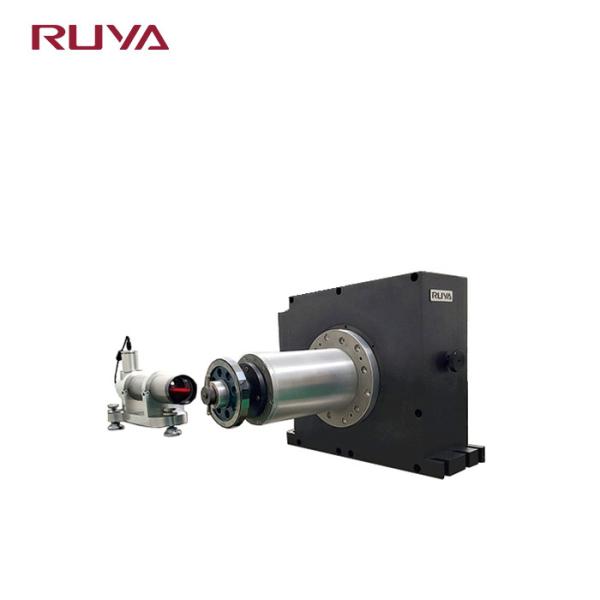

ZDFT-360A Program Controlled Automatic Multi Tooth Indexing Table

ZDFT-360A Program-controlled Automatic Multi-tooth Indexing Table

Product Description

The segmented multi-tooth indexing table consists of a multi-tooth indexing table and a set of segmented drum wheel reading systems, which can achieve the highest resolution of angle readings up to 0.1" on both fixed and movable reading sleeves, and is suitable for measurement sites where continuous readings are required.

The program-controlled multi-tooth indexing table is controlled by a computer-controlled stepper motor to realize the lifting and rotation of the upper tooth disc, so that the work of the multi-tooth indexing table is controlled by the program to achieve automatic testing.

Product Parameters

Jiujiang RUYA Precision Technology Co., Ltd. was established in January 2013. It is located at the northern foot of Mount Lushan of China, a national 5A tourist attraction, and on the south bank of the Yangtze River. It is stationed in the national Jiujiang Economic and Technological Development Zone. It is a national-level high-tech enterprise, a national-level “Specialized Special New Little Giant” enterprise and a “gazelle enterprise” in Jiangxi Province with development directions of precision machinery, geometric measurement, inertial testing technology, and precision angle measurement sensors.

The company has established a modern enterprise management system and a digital information management model and has passed the integration of the two informatization standards implementation system and the national military standard quality system (GJB 9001C-2017) certification. At the same time, it has established a long-term industry-university-research collaborative innovation mechanism with universities such as the University of Science and Technology of China and Hefei University of Technology, gathering high-end talents in the geometric measurement and inertial testing technology industries, cultivating a group of key technical personnel in precision machinery and measurement, power electronics and measurement and control software technology development, and creating an industry-leading "high-end equipment manufacturing measurement and testing laboratory" and be recognized by provincial and municipal innovation platforms such as "New R&D Institution" and "Precision Angle Measurement Technology Innovation Center".
