| Categories | Power transformer |
|---|---|
| Type: | power transformer |
| Material: | ferrite core, Copper |
| Frequency: | 50Hz |
| Shape: | Rectangle |
| Toplogy: | Flyback |
| Winding Material: | Copper |
| Place of Origin: | Guangdong, China |
| Brand Name: | Chipsen |
| Model Number: | EE19 |
| application: | Power |
| Phase: | Three |
| Coil Structure: | TOROIDAL |
| Coil Number: | AUTOTRANSFORMER |
| Input Voltage: | 220V, Other |
| Output Voltage: | 200V, 127V, 9V |
| Wire: | Copper Wire |
| Core material: | Ferrite Coil |
| Sample: | Available |
| Output voltage: | 3v-24v |
| Work Frequency: | 1KHz to 500KHz |
| Pin: | Customized |
| R&D cost: | Free design service |
| Sample cost: | Free samples available |
| Certifications: | UL, ISO9001, ISO14001,CQC |
| Package: | As your request |
| MOQ: | 100 pieces |
| Price: | CN¥3.77/pieces 100-4999 pieces |

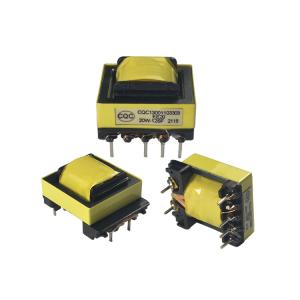

step up step down transformer 220v to 110v 5v/12v 2a power transformer EE19 high frequency smps flyback transformer
| Item Name | Transformer |
| Model No. | EE series |
| Components | ferrite core, bobbin, copper wire, coper foil tape, margin tape, tube |
| Bobbin Material | Phenolic |
| Shape Type | horizontal type / vertical type / SMD type |
| Working Frequency Range | above 1KHZ |
| Output Power | 1W-3000W |
| Output Voltage | 0.5V-5000V |
| Output Current | 0.01A-100A |
| Storage Temperature | -25℃ to +95℃ |
| Working Temperature | -40℃ to +125℃ |
| Storage Humidity | 30% to 95% |
| Test Items | Ø Turns Ratio Ø Inductance leakage Ø DC resistance test |
| Certifications | ISO9001:2008, ISO14001:2008, UL, CQC |
| MOQ | 1000 pcs |
| OEM | acceptable |
| Sample | free |
| Sample Time | 3-5 working days |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Delivery time | 7-15 days after |
| Feature | Large transmission power Low loss Low temperature rise Stable performance |
| Applications | 1. switching power supply industry 2. electrical equipments industry 3. medical equipments industry 4. communication equipments industry 5. the solar energy & inverter equipments industry 6. The electric car charger industry 7. vehicle electronic equipment industry |
|
