| Categories | High Frequency Transformer |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | CHIPSEN |

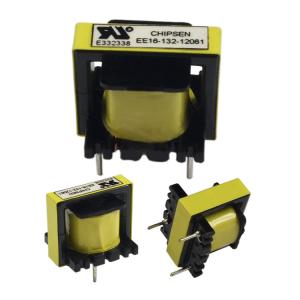

| Model Number: | EE16 |
| Specification: | 1+2 pins |
| Packaging Type: | boxes |
| Application: | Electronic, Industrial Power Supplies |
| Operating Temperature: | -40℃ to 125 ℃ |
| Package / Case: | unencapsulated |
| Series: | EE series |
| Features: | high operating frequency |
| Description: | custom transformer |
| Product name: | power transformers |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Frequency: | high Frequecy |
| Standard: | IEC60076 |
| Advantage: | high Quanlity |
| Input/Output voltage: | customized |
| MOQ: | 100 pcs |
| Package: | boxes |
| Warranty: | 5 years |
| MOQ: | 100 pieces |
| Price: | CN¥2.40/pieces 100-999 pieces |
 | Model No. | High frequency transformer EE16 |
| Working Frequency Range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| Output Voltage | 0.5V-15000V | |
| Output Current | 0.01A-100A | |
| Storage Temperature | +5℃ to +95℃ | |
| Working Temperature | -40℃ to +125℃ | |
| Storage Humidity | 30% to 70% | |
| Certifications | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC | |
| Designing Information | operating frequency | |
| circuit topology | ||
| input voltage range | ||
| output power (V/A) | ||
| mounting dimensions | ||
| safety requirements | ||
| product application |
How to get samples?
Chipsen Sample Policy
How long the sample can be ready?
Shipping for samples Customer afford freignt cost, we can help customer to use the cheapest way.
|
