| Categories | High Frequency Transformer |
|---|---|
| Type: | Instrument Transformer, power transformer, distribution transformer, high frequency transformer, ferrite core transformer |
| Material: | Copper |
| Frequency: | 1KHZ-500KHZ |
| Shape: | ROUND, flat, Coil, Rectangle |
| Toplogy: | FORWARD, BUCK, Boost, Flyback |
| Winding Material: | Copper |
| Place of Origin: | Guangdong, China |
| Brand Name: | Chipsen |
| Model Number: | Chipsen-EE42 |
| application: | Power |
| Phase: | Single Phase |
| Coil Structure: | TOROIDAL |
| Coil Number: | AUTOTRANSFORMER |
| Input Voltage: | 220V, 110V, 240V, Other, 100/110/115/120/200/220/240V |

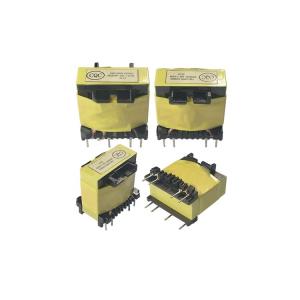

| Product name: | PCB Mount Transformer |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Magnetic material: | ferrite cores |
| Transformer type: | High Frenquecy Transformer |
| Application: | Household Applicances |
| Max, Operating Power: | 50w |
| Delivery: | 7-15working days |
| Output Voltage: | 3v-24v |
| Price: | CN¥25.40/pieces 1-4999 pieces |
led lighting pulse transformer smps flyback transformer 220 volt 24
volt ac power transformer
| Components | bobbin, ferrite core, silicon steel sheet, copper wire, copper foil, insulation tape, margin tape, TFL tube, expoy |
| Bobbin Material | bakelite/ phenolic/ plastics |
| Shape Type | horizontal / vertical / SMD |
| Inductance Range | 1uH-100H |
| Working Frequency Range | 50Hz --300KHZ |
| Output Power | 0.1W-3000W |
| Output Voltage | 0.1V-10000V |
| Output Current | 0.01A-100A |
| Operating Temperature | -15℃~+80℃ |
| Storage Temperature | -25℃~+85℃ |
| Storage Humidity | 30% ~ 90% |
| Test Items | Ø Turns ratio |
| Ø Inductance | |
| Ø Phase test | |
| Ø Inductance leakage | |
| Ø DC resistance test | |
| Ø Withstand voltage | |
| Ø Insulation resistance | |
| Certification | ISO9001:2015, ISO14001:2015, UL, ROHS, CQC |
| MOQ | 1000 pcs |
| OEM/ODM | acceptable |
| Sample | free |
| Sample Time | 3-5 working days |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Delivery time | 15-18 working days against deposit |
| Features | Large transmission power |
| Low loss | |
| Low temperature rise | |
| Stable performance | |
| Applications | 1. switching power supply |
| 2. electrical home appliance | |
| 3. medical equipments | |
| 4. communication device | |
| 5. solar energy and inverter | |
| 6. car charging pile and car charger | |
| 7. security products and smart home |
|
