Place of Origin: | China |
Brand Name: | GC |
Certification: | ISO |
MOQ: | 1 Set |
Packaging Details: | Wooden package |
Delivery Time: | In stock |
Payment Terms: | TT |
Supply Ability: | 100 Sets |
Price: | Negotiated |
Model Number: | GC-WDK-4A |
Model NO.: | GC-WDK-4A |
Max Diameter of Workpiece: | <500mm |
Mass Scope of Workpiece: | <900kg |
Type: | Plastic and Rubber Test Machine |
Maxcapacity: | <1000KN |
Accuracy Grade: | 0.5 |
Display: | Digital |
Control: | Manual Control |
Weight: | 0-100Kg |
Power: | 220V 50Hz |
Control Mode: | Touch Screen Control |
Heating Power: | 4kw |
Specification: | 107*64*90cm |
Trademark: | GC |
Origin: | China |
Package Gross Weight: | 100.000kg |
Customization: | Available |
Company Info. |
Guangdong Guangce Instrument Technology Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

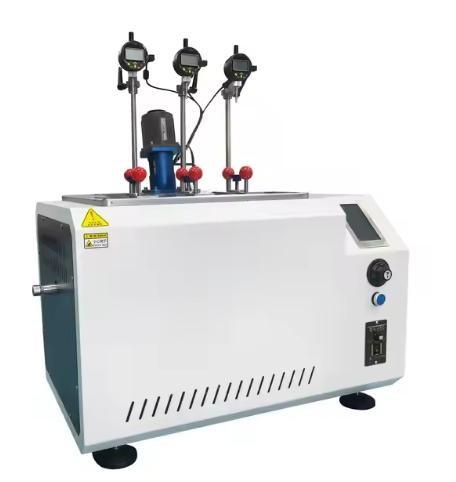

-The thermal deformation Vicat tester is a device used to determine the softening point of a material under a specified load and temperature.
It is commonly used in the plastics industry to assess the heat
resistance and dimensional stability of thermoplastic materials.
-The machine can also measure the heat resistance of materials by
determining the temperature at which a specific deformation occurs.
This can help determine the suitability of a material for specific applications where heat resistance is critical.
Product Name | Thermal Deformation VICAT Softening Point Test Machine |
Temperature control range | Ambient temperature -300ºC |
Heating rate | (120±10)ºC/h;(12±1)ºC/6min; (50±5)ºC/h; (5a±0.5)ºC/6min |
Temperature indication error | 0.1ºC |
Temperature control accuracy | ±0.5ºC |
Maximum deformation indication error | ±0.001mm |
Deformation measurement range | 0-10mm |
Number of sample racks | 3,4,6 |
Load rod and pallet quality | 68g |
Heating medium | Methyl silicone oil or transformer oil |
Cooling method | Natural cooling above 150, water cooling or natural cooling below 150 |
Heating power | 4KW |
About company profile:
Guangdong Guangce Instrument Technology Company Limited, located in Dongguan City, is a technology-based private enterprise engaged in research and development, production, OEM and sales of scientific and technological equipment manufacturing.
The company has 15 years of production experience, has various software and hardware design and research and development capabilities, and also have experienced and high-quality technical team and professional sales team.
The company's main business includes plastic physical properties, mechanics, environmental reliability, aging, and flame retardant testing instruments, among which the annual output of plastic polymer physical properties testing instruments ranks among the top in the country.
![]() |
