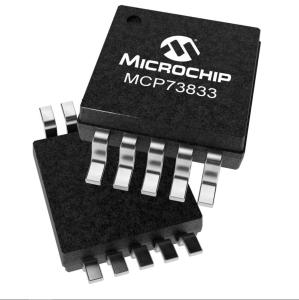

MCP73833 MCP73834 MCP73837 MCP73838 MCP73837-FCI/MF MCP73837-FCI/UN IC Linear Battery Charger Controller PMIC

MCP73833 MCP73834 MCP73837 MCP73838 MCP73837-FCI/MF MCP73837-FCI/UN IC Linear Battery Charger Controller PMIC

Applications:
• Low-Cost Li-Ion/Li-Poly. Battery Chargers
• MP3 Players
• Digital Still Camera
• Portable Media Players
• Handheld Devices
• Bluetooth® Headsets
• USB Chargers

Battery Management IC Product Family Specification:

Microchip is a leading provider of microcontroller, mixed-signal, analog,security

and Flash-IP solutions,as well as a wide variety of other products.
Microchip enable low-risk product development, lower total system cost and faster time to

market for thousands of diverse customer applications worldwide.

Power management PMIC IC chip full series for available:

Description:

The MCP73113/4 are highly integrated Li-Ion battery charge management controllers for use in space-limited and cost-sensitive applications.

The MCP73113/4 devices provide specific charge algorithms for Li-Ion/Li-Polymer batteries to achieve optimal capacity and safety in the shortest charging time possible. Along with their small physical size, the low number of external components make the MCP73113/4 ideally suitable for portable applications.

The absolute maximum voltage, up to 18V, allows the use of MCP73113/4 in harsh environments, such as low cost wall wart or voltage spikes from plug/unplug.

The MCP73113/4 devices employ a constant current/ constant voltage charge algorithm.

The various charging voltage regulations provide design engineers flexibility to use in different applications.

The fast charge, constant current value is set with one external resistor from 130 mA to 1100 mA.

The MCP73113/4 devices limit the charge current based on die temperature during high power or high ambient conditions.

This thermal regulation optimizes the charge cycle time while maintaining device reliability.

The PROG pin of the MCP73113/4 also serves as enable pin. When high-impedance is applied, the MCP73113/4 will be in Standby mode.

The MCP73113/4 devices are fully specified over the ambient temperature range of -40°C to +85°C.

They are available in a 10-lead, DFN package.

Features:
• Complete Linear Charge Management Controller:
- Integrated Input Overvoltage Protection
- Integrated Pass Transistor
- Integrated Current Sense
- Integrated Reverse Discharge Protection
• Constant Current/Constant Voltage Operation
with Thermal Regulation
• 4.15V Undervoltage Lockout (UVLO)
• 18V Absolute Maximum Input with OVP:
- 6.5V (MCP73113)
- 5.8V (MCP73114)
• High Accuracy Preset Voltage Regulation Through
Full Temperature Range (-5°C to +55°C): +0.5%
• Battery Charge Voltage Options:
- 4.10V, 4.20V, 4.35V or 4.4V
• Resistor Programmable Fast Charge Current:
- 130 mA-1100 mA
• Preconditioning of Deeply Depleted Cells:
- Available Options: 10% or Disable
• Integrated Precondition Timer:
- 32 Minutes or Disable
• Automatic End-of-Charge Control:
- Selectable Minimum Current Ratio:
5%, 7.5%, 10% or 20%
- Elapse Safety Timer: 4 HR, 6 HR, 8 HR or
Disable
• Automatic Recharge:
- Available Options: 95% or Disable
• Charge Status Output-Two Style Options
• Soft Start
• Temperature Range: -40°C to +85°C
• Packaging: DFN-10 (3 mm x 3 mm)
