2 Pieces Carton Box Cardboard Gluing Machine 3000 Pieces/Hour

Categories Carton Box Folder Gluer Machine
Brand Name: RINO
Model Number: HF-GD2300
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 20 Set/Month
Delivery Time: 40-60 Working Days After Deposit
Packaging Details: Wrapped with film or in wooden case
Name: 2 Pieces Carton Box Gluer Machine Double Pieces Cardboard Gluing
Maximum Paperboard Size: 1150×1060mm
Minimum Paperboard Size: 450×260mm
Maximum Height Of Stacking: 400mm
Maximum Speed: 3000 pieces/hour
Machine Power: 11 kw
Total Weight: 2.4 Ton
Overall Dimensions Size: 3000×3050 ×1460mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2 Pieces Carton Box Cardboard Gluing Machine 3000 Pieces/Hour

2 Pieces Carton Box Gluer Machine Double Pieces Cardboard Gluing

Carton Box Gluer Machine Introduction


This machine is specially used to glue AB paper (2 sheets of corrugated paper or cardboard) into a carton. The current production methods of AB carton: 1. Traditional manual gluing and gluing. 2. Old fashioned folder and glue then paste by hand. The above two methods are labor-intensive, low-efficiency, and difficult to control the pasting accuracy and quality. 3. AB paper folder gluer and folder gluer solve the above problems with advanced working methods.


Parameter of Carton Box Gluer Machine


ModelHF-GD2300
Maximum Size

1150×1060mm

Minimum size

450×260mm

Applicable
Paper

A-E 3/5ply corrugated board
and cardboard

Maximum speed

0-3000 pieces/hour

Total power11 kw
Weight2 .4 TON
Dimensions

3000×3050
×1460mm


Carton Box Gluer Machine Detail



Main parts list

PARTS NAMEBRAND
FEEDING MOTORZHONGDA (ZD CHINA)
FEEDING PUMPNAXIDE (CHINA )
LINEAR GUIDEWAYKOREA IMPORTED
GUIDE SCREWHIWIN TAIWAN
SOLENOID VALVEAIRTAC TAIWAN
INVERTERTAIWAN DELTA
SERVO MOTORDELTA TAIWAN
HUMAN MACHINE INTERFACETAIWAN DELTA
POWERTAIWAN DELTA
PROGRAM CONTROLLERTAIWAN DELTA
FASTENERSTAIWAN JINYI, PENGCHI,
RELAYJAPAN IMPORTED
BUTTONSCHNEIDER
PAPER FEED BELTTAIWAN IMPORTED
EXCITED PAPER FEEDING BELTTAIWAN IMPORTED
BEARINGRENBEN NSK.HRB
PROXIMITY SWITCHXINLING
THERMOSTATXINLING
GLUING MOTORCHINA
FORWARD PAPER ALUMINUM PLATECHINA
TIMING BELTIMPORTED
CLUTCHCHINA

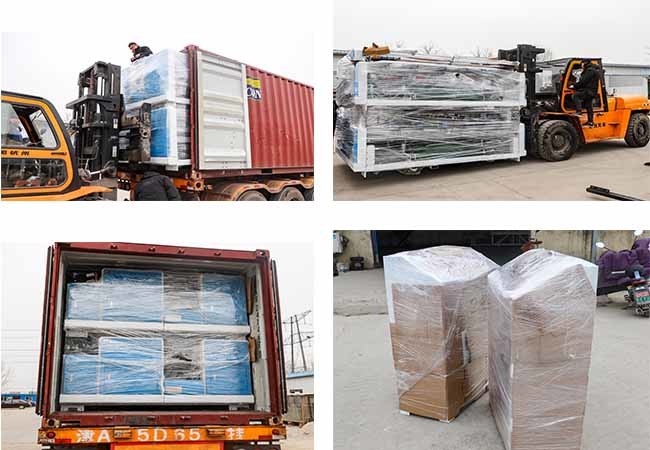

Packing&Shipping
