| Categories | EV Charger Connectors |
|---|---|
| Brand Name: | NeoPower |
| Model Number: | EVS691 |
| Certification: | GB/T20234, 1/3-2015, GB/T 18487,1-2015 |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Price: | Negotiable according to Quantities |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 50000 per day |
| Delivery Time: | 3~7 days |
| Packaging Details: | Standard Export Carton Box |
| Rated Voltage: | 250V AC/ 440V AC |
| Rated Current: | 16A/32A/63A |
| AC phase: | Single phase/3-phase Optional |
| Protection Level:: | IP55 (Mated) |
| Type of charge plug: | vehicle connector, plug |
| Standard: | GB/T20234, 1/3-2015, GB/T 18487,1-2015 |
| Variants: | 1) with Atmospere Lamp; 2) Right Angle Outlet; 3) Socket with Button; 4) Straight |
| Company Info. |
| Neo Power Energy Tech Limited |
| View Contact Details |
| Product List |
This product is Electric Vehicle EV AC Charger Plug, with 250V AC single phase and 440V 3-phase in line with GB/T 20234-2015, GB18487-2015 stanards; with 4 variants: 1) with Atmospere Lamp; 2) Right Angle Outlet; 3) Socket with Button;4) Straight.
| Rated Voltage | 250V AC/440V AC |
| Rated Current | 16A/32A/63A |
| AC Phase | Single phase/3-phase Optional |
| Protection Level | IP55 (Mated),IP67 (Outlet) |
| Type of charge plug | vehicle connector, plug |
| Standard | GB/T20234, 1/3-2015, GB/T 18487,1-2015 |
Product Pictures:
1) with Atmospere Lamp
2) Right Angle Outlet
3) Socket with Button

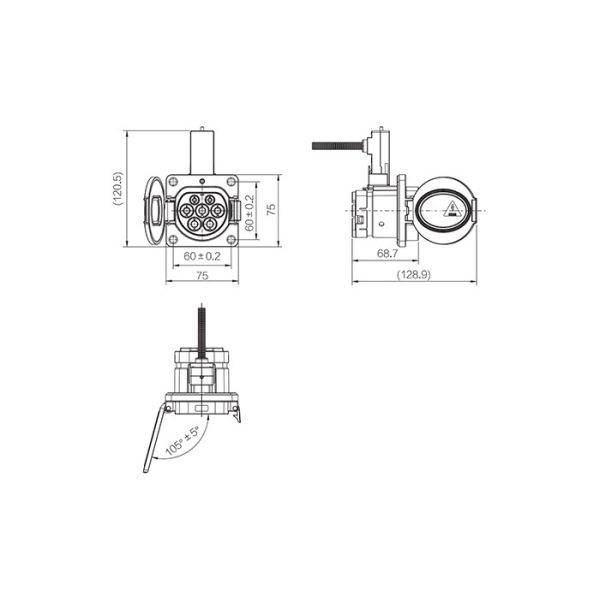

Drawings:
1) with Atmospere Lamp
2) Right Angle Outlet
3) Socket with Button
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
|
