10g powder seasoning powder spice flour horizontal packing machine
for flat sachat bag with high packing speed
This machine is versatile and suitable for medium and small 3/4
flat pouches sachet, and can pack powder, coffee, condiments,
tomato sauce, shampoo, etc. Packages produced by this machine are
succinct and pretty.
Machine parameters
| operation | HFFS | Horizontal form fill and seal | |
| Technology concept | Pouch forming | Form the reel | |
| Pouch transport system | intermittent | ||
| Construction | Machine frame | SS304 and carbon steel | |
| parts | SS304 and aluminum alloy | ||
| Parts in contact with product | Stainless steel SUS316 | ||
| Reel | Reel diameter | 400mm | |
| Reel Width | 4400mm | ||
| Reel core | 76mm | ||
| dimensions | Length×width×height | 2850*970*1250mm | |
| weight | 1000Kg | ||
| Pouch dimensions | Length×width×height | Minimum size | Maximum size |
| 60*80mm | 160*200mm | ||
| speed(ppm) volume(c.c) | Speed max | Volume max | |
| 60-85 bag per mintue | 160ml | ||
| Consumption | Electrical | 6.0kw | |
| Air consumption | 50L/min 0.6Mpa | ||
| Electrical Data | 200-460V/50-60Hz/N+G | ||

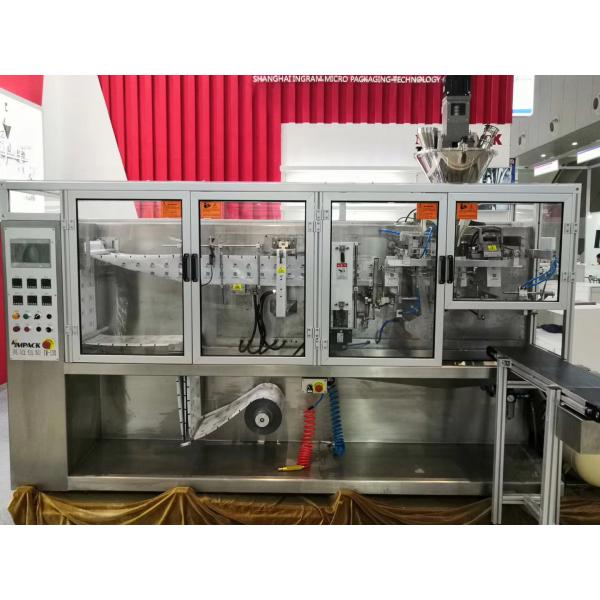

Machine photo:
Machine drawing:
Associated equipment
Warranty:
All Parts Are Under One Year Warranty With Defects From
Manufacturer. Any Other Defect Caused By Human Error, Mishandling,
Wear-And-Tear & Any Foreseeable Conditions Will Not Be Covered By
This Warranty.
Contact:
Contact: sophie zheng
Wetchat/whatsapp: 86-13184272885
Email:sales@newpack.com.cn
|
