| Categories | Vacuum Emulsifying Machine |
|---|---|
| Brand Name: | LTPM CHINA |
| Model Number: | LTRZ-Series |
| Certification: | CE,SGS |
| Place of Origin: | China |
| MOQ: | 1Set |
| Payment Terms: | T/T, L/C, D/P, Cash, Credit Card, Paypal |
| Supply Ability: | 25sets/month |
| Delivery Time: | 25days |
| Packaging Details: | Export Standard Wooden Case |
| Mixer Type: | Homogenizer |
| Application: | Viscous Fluid, Medicine Processing, Chemicals Processing |
| Voltage: | 380V 50HZ |
| Contact Part Material: | SUS316 |
| Using life: | More than 15 years |
| Pot Working Pressure: | -0.090 Mpa |
| Jacket Working Pressure: | 0.2Mpa |
| Spare parts: | One year spare parts and tools |
| Company Info. |
| Leadtop Pharmaceutical Machinery |
| Verified Supplier |
| View Contact Details |
| Product List |
The designing of LTRZ-Seris Vacuum Emulsifying Mixer is based on importing advanced technology of professional cosmetic and pharmaceutical ointment producing workmanship from abroad. It is composed of emulsifying mixer, vacuum system, electric controlsystem etc. The whole-set of this equipment is composed of emulsifying mixing pot, Vacuum system, Hydraulic system, and electrical controlsystem.
1) Apply vacuum state so raw materials can be sucked inside and when mixing there will be no bubbles.
2) With three layers each pot can be heated and main pot can be electrically tilted when discharge.
3) Paddle and homogenizer will work together to homogenize and mix at the same time. Time saved with better effect.
4) Auto control for easy operating,both time and rotating speed can be controlled to suit different production needs.
5) With spray balls for self-cleaning based on mirror polished SS304 or SS316L(pharmaceutical).
6) Customizing supported.
Specifications:
| Capacity | Volume 200L | ||
| Kettle Cover | Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp | ||
| Mixing pot | Material | Inner layer: SUS316L thickness: 3mm | |
| Middle layer: SUS304 thickness: 2mm | |||
| Outside layer: SUS304 thickness:2mm | |||
| configuration | Bottom material exhaust, size: 1.5” | ||
| Temp. sensor (0-199℃) | |||
| Electrical heating: 12kw, cooling water inlet | |||
| Stirring system | Homogenizer | 1．Material: SUS316L; standard homogenizer 2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min | |
| Stirring scrap and middle stirring | Material: SUS316L,Scrap material: PTFE | ||
1. Stirring scrap and middle stirring use the same motor 2,Power:1.5kw/380V/50Hz；RPM:0~86r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction | |||
| Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring. | |||
| Vacuum system | 1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open) | ||
| Heating method | Jacket electrical heating/Seam Heating | ||
| Exhaust method | Electric doom and bottom discharge or positive pressure discharge material | ||
| Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa | ||
| Control box | SUS304 , 1.2mm thickness | ||
| Dimension | 3500mm×2450mm×2250~3150 mm | ||
| Shelf is SS, platform with raised platform and SS guardrail | |||
| Spare parts | One year spare parts and tools | ||
| Guarantee | One year | ||
| Using life | More than 15 years | ||
Oil pot | Design volume | 100L |
| Working capacity | 90L | |
| Stirring power | 1.1kw | |
| Stirring speed | 1400 RPM | |
| Heating power | 12 Kw | |
Water pot | Design volume | 160L |
| Working capacity | 150L | |
| Stirring power | 1.1kw | |
| Stirring speed | 1400 RPM | |
| Heating power | 12 Kw |

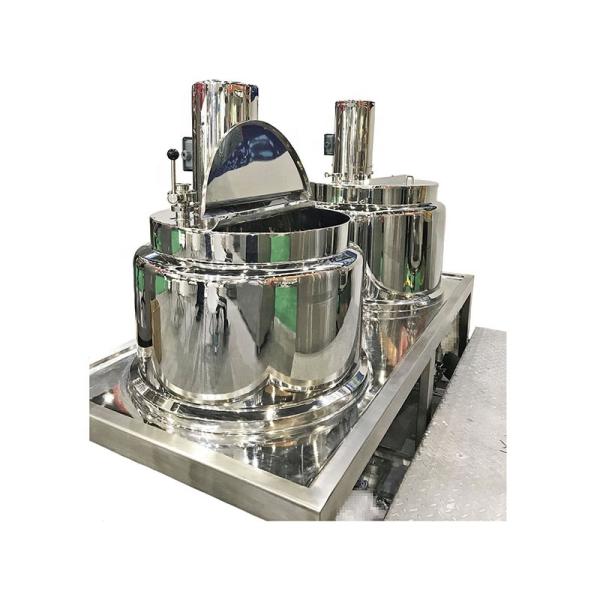

Machine Part Details
Control
paint,coating,oil,ink
fertilizer,polishes,pigment
ointment,paste,cream
tablet coating
mayonnaise,sauce,dressing,
ingredients,
syrup,beverage,dairy,
face cream, body cream,
lotion,detergent,toothpaste,
surfactant
|
