| Categories | Wood Crusher |
|---|---|
| Brand Name: | SH |
| Model Number: | SH216,SH218,SH2112,SH2113 |
| Certification: | ISO9001 |
| Place of Origin: | Shandong Province, China |
| MOQ: | 1 SET |
| Price: | USD3,000-35,000/SET |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 100 sets/quarter |
| Delivery Time: | within 10 days |
| Packaging Details: | container loading |
| Name: | Wood Chipper |
| Type: | Drum Chipper |
| Feeding inlet size: | 300 x 600mm |
| Blade quantity: | 2 or 3 pcs |
| Infeed conveyor: | 6meters |
| Outfeed conveyor: | 10meters |
| Capacity: | 5-10tons /hour |
| Mill Granularity: | 30-50mm |
| Control: | Control cabinet automatic operation |
| Power: | 55KW/3PH or subject to chipper model |
| Company Info. |
| Weifang Jiuyi Information technology co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

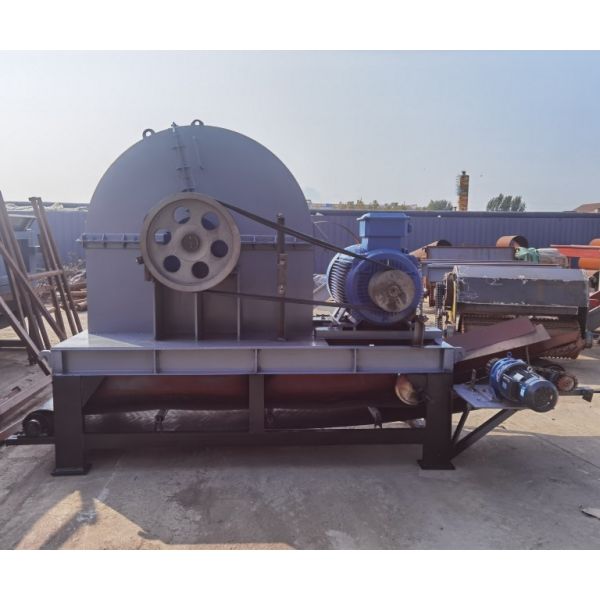

Drum clipper is a kind of specialized equipment to manufacture wood chip, which can be used for the manufacture of flake board, fiber board and paper. The small-sized drum clipper is the best equipment for labs of factories. Raw materials for drum clipper are thin timber, branches, remainder of wood processing (slab, batten, heart of log) and sugar cane stalk, reed, bamboo.
| Model | SH216 | SH218 | SH2112 |
| Blade Roll Diameter(mm) | 650 | 800 | 1000 |
| Blade Roll Length(mm) | 600 | 800 | 780 |
| Blade Quantity(Pcs) | 2 | 2 | 3 |
| Feeding Inlet(mm) | 300*600 | 380*700 | 550*800 |
| Blade Roll Speed (R/Min) | 650 | 650 | 500 |
| Feeding Speed(M/Min) | 33 | 35 | 38 |
| Max Processing Wood Diameter(mm) | 240 | 330 | 500 |
| Wood Chip Length(mm) | 20-30 | 20-30 | 20-50 |
| Production Capacity(T/H) | 7-10 | 25-30 | 30-40 |
| Main Motor Power(kw) | 55 | 110 | 160 |
| Feeding Roll Motor Power(kw) | 3*1 , 4*1 | 5.5*2 | 7.5*1,5.5*1 |
| Weight(t) | 4.5 | 7 | 12 |
| Overall Dimension(mm) | 2600*2100*1430 | 2670*2150*1500 | 4400*3700*2050 |
| Feeding Motor Power | 2.2KW | 3KW | 3KW |
| Oil Pump Motor Power(kw) | 1.5 | 1.5 | 1.5 |
| Feeding Conveyor Length | 6 Meters | 6 Meters | 8 Meters |
| Outlet Conveyor Length | 10 Meters | 10 Meters | 12 Meters |
Related Products
Disc Wood Chipper
| Wood Chipper Machine | ||
| Model | SHJP1600 | SHJP1800 |
| Feeding inlet size | 450*450mm | 500*500mm |
| Knife No. | 6pcs | 6pcs |
| Main motor power | 185kw | 220kw |
| Horizontal feed conveyor | 8000mm | 8000mm |
| Slope outfeed conveyor | 10000mm | 10000mm |
| Wood chipper size | 20-35mm | 20-35mm |
| Discharging type | down | down |
| Production capacity | 20t/h | 30t/h |
Heavy Duty Wood Chipper/Crusher Machine
Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stones
3. Tehnical data:
| Model | SH 800-500 | SH 1300-600 | SH 1600-600 |
| Feeding Inlet | 800*500mm | 1300*600mm | 1600*600mm |
| Blade Roller Diameter | 850mm | 850mm | 850mm |
| Blade Roller Speed | 850RPM | ||
| Capacity | 10-15tons/hour | 15-20tons/hour | 25-30tons/hour |
| YG8 Hammer Blade Quantity | 16pcs | 20pcs | 28pcs |
| Knife Blade Quantity | 2groups/4pcs | ||
| Max. Processing Wood Diameter | 300mm | 450mm | 450mm |
| Motor Power | 110kw | 160kw | 250kw |
| Wood Chipper Size | 20-40cm(Custmized) | ||
| Working Life of the Hammer Blades | 4000T-5000T | ||
