| Categories | Ampoule Filling Machine |
|---|---|
| Brand Name: | Lingyao |
| Model Number: | LYAPL1-20-II |
| Certification: | CE, ISO, GMP |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | USD 150,000-350,000 per unit |
| Payment Terms: | D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1 unit per month |
| Delivery Time: | 180 work days |
| Packaging Details: | carton, wood carton, pallets |
| Machine Name: | Ampoule Filling Line |
| Function: | Ampoules Washing, Sterilization, Filling, Sealing |
| Filling Volume: | 1-20ml(International Standard) |
| Filling Liquid Type: | Vaccines and Injectables |
| Max Output Capacity: | 36000 BPH |
| Ampoules Material: | Glass |
| Filling Accuracy: | +/-0.5% |
| Material Compatibility: | SS316 |
| Data Integrity & Traceability: | 21 CFR Part 11 |
| Breakage Rate: | <0.5% |
| CIP/SIP System: | Available |
| Oven Cooling Style: | Air Cooling |
| LAF System: | ISO Class 5 |
| Company Info. |
| Suzhou Lingyao Intelligent Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

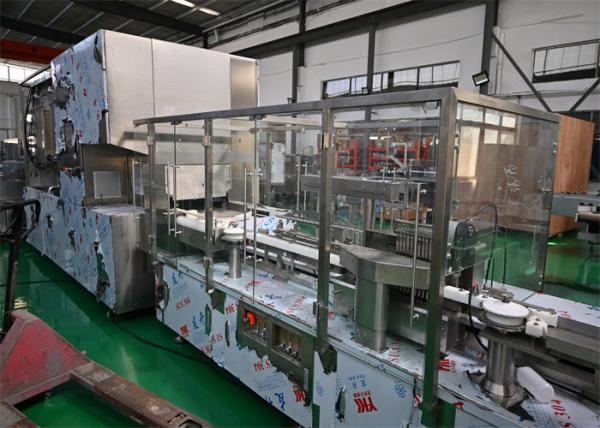

High Speed Ampoule Filling Line for Vaccines and Injectables, Precision Sterile Liquid Filling and Packaging Solutions
Revolutionize Your Ampoule Packaging with Precision & Speed
The High-Speed Ampoule Filling Line is engineered for critical pharmaceutical applications, including
vaccines, insulin, and biologics. Designed to handle 2-30ml
ampoules, this system integrates cutting-edge servo-driven pumps
and AI-powered vision inspection to ensure ±0.5% dosing accuracy—ideal for high-value injectables requiring strict batch
consistency.
Why This Machine Stands Out?
Spec:
| technical parameters | ||||
| product model | LYQCL120+LYASMR 620/43+LYAGF10 | |||
| size range | 1-20ml national standard ampoules | |||
| Output(1-2ml) | 22000-28000pcs/h | |||
| Output(5-10ml) | 12000-18000pcs/h | |||
| Output(20ml) | 6000-9000pcs/h | |||
| Clarity | ＞99% | |||
| Breakage rate | ≤1%(whole line) | |||
| Filling Precision | ±0.5-2%(according to pharmacopoeia standard) | |||
| Water Consumption and Pressure | 0.2-0.4Mpa / 0.6-1.0m³/h | |||
| Cleaning CA Consumption and Pressure | 0.3-0.6Mpa / 35-80m³/h 0.3-1.0Mpa / 35-80m³/h | |||
| Sealed gas | Gas(liquefied gas)+oxygen, oxyhydrogen generation gas, natural gas | |||
| Oxygen consumption | 0.2-0.3Mpa,1.2-1.5m³/h | |||
| Gas consumption | 0.1-0.3Mpa,1.5-2.5m³/h | |||
| Exhaust volume | 3500-4100m³/h | |||
| Net weight | 7800(kg) | |||
| Total power | around 91kw 380V 50HZ | |||
| Outline size | around 10100x2260x2445mm | |||
Optimized for Middle Eastern Pharma Trends
With reinforced heat dissipation (up to 55℃ ambient tolerance) and
halal-compliant material certifications, this ampoule filling line
addresses regional demands for antiviral drugs and insulin analogs. Its modular design allows rapid format changes—perfect for
contract manufacturers juggling diverse SKUs.
Sustainability Edge:
From small-batch oncology drugs to mass vaccine campaigns, this ampoule filling line delivers unmatched reliability in sterile liquid packaging.
|
