| Categories | Georg Fischer Piping System |
|---|---|
| Brand Name: | Georg Fischer |
| Model Number: | 3-2734-00 |
| Place of Origin: | USA |
| MOQ: | 1 |
| Price: | Negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100PCS/MONTHS |
| Delivery Time: | 3-5DAYS |
| Packaging Details: | Carton |
| Description: | pH Electrode, flat, Pt1000, ¾ in. NPT |
| condition: | new and original |
| product type: | Sensor |
| brand: | GF Signet |
| Factory Warranty: | 1 year |
| Code: | 159 001 774 |
| Company Info. |
| Xiamen ZhiCheng Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
The GF Signet 3-2734-00 features a patented reference electrode design and uses the unique foul-proof patented DryLoc connector. The 3-2734-00 has a flat tip design and can incorporate 3/4 inch NPT threads for installing into standard pipe-tees.
Product Information
General | |||
Performance | Efficiency | >95% @ 25 °C (77 ° F) | |
Operating Range | pH | 0 to 14 pH | |
ORP | ±2000 mV | ||
3-2734-HF, 3-2736-HF | Hydrofluoric acid resistant glass, pH 6 or below; trace HF ≤2% | ||
Compatibility | |||
2750 Sensor Electronics (for 8900, 9900, Profibus Concentrator, 4 to 20 mA) | |||
Temperature Sensor | |||
PT1000 | Compatible with Signet 2750 pH/ORP Sensor Electronics for connection to a PLC or to the Signet 8900 or 9900 instruments and Profibus Concentrator | ||
Process Connection | |||
¾ in. NPT | ISO 7/1-R 3/4 | Mounts into Signet fittings | |
Wetted Materials | |||
pH | Ryton® (PPS), glass, PTFE, FPM | ||
ORP | Ryton® (PPS), glass, PTFE, FPM, Platinum | ||
Max. Temperature/Pressure Rating | |||
Operating Temperature Range | 10 °C to 100 °C | 50 °F to 212 °F | |
Operating Pressure Range | 0 to 6.9 bar (0 to 100 psi) @ 10 °C to 65 °C (50 °F to 149 °F) | ||
Linearity Derated 6.9 to 4.0 bar (100 to 58 psi) @ 65 °C to 100 °C (149 °F to 212 °F) | |||
Recommended Storage Temperature | |||
0 °C to 50 °C | 32 °F to 122 °F | ||
The electrode glass will shatter if shipped or stored at temperature below 0 °C (32 °F) | |||
The performance life of the electrode will shorten if stored at temperatures above 50 °C (122 °F) | |||
Mounting | |||
In-line Mounting | Use the sensor threads | ||
Use a Signet standard fitting ½ to 4 in. | |||
Sensor can be mounted at any angle | |||
Submersible Mounting | Use threads on model 2750 | ||
Requires ¾ inch NPT or ISO 7/1-R 3/4 male threaded liquid tight extension conduit. | |||
Shipping Weight | |||
0.25 kg | 0.55 lb | ||
Standards and Approvals | |||
CE, FCC, RoHS compliant, China RoHS | |||
Manufactured under ISO 9001 for Quality, ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety | |||

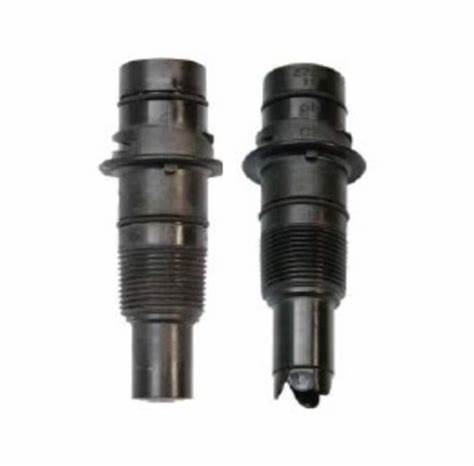

Product Photo
