| Categories | Precision Injection Molding |
|---|---|
| Brand Name: | Chitwing |
| Model Number: | E -cigarettes |
| Certification: | ISO 9001:2015 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 set/month |
| Delivery Time: | 30 day(s) |
| Packaging Details: | The mold is packaged with a wooden box and placed on a wood pallet. |
| Size: | 320 X 350 X 426 |
| IMM Tonnage: | 110T |
| Mold Weight: | 294KG |
| Design software: | 3D-UG 4.0/ 2D-CAD |
| Mould life: | ≥500000 shots |
| Runner: | Cold runner |
| Part Size/Weight: | Φ16.0*90.0mm / 4.98g |
| Part material: | PC+ABS |
| Mold type: | Consumer Electronics Molds |

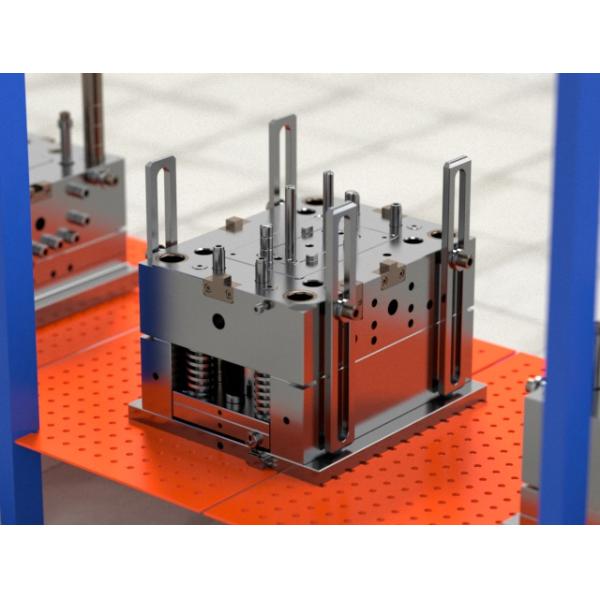

Battery Housing (1*2)
No.24500
Custom mold base P/N: FCI3527.110100105
Gate: tab gate (the pin point gate turns to the side gate)
| Mold size/net weight | IMM tonnage 110T | ||||
| 320 X 350 X 426mm/294kg |
| Part size/weight | |||||
| Φ16.0*90.0mm / 4.98g |
|
|
|
|
| The mold is designed with tab gate, the pin point gate turns to the side gate. The mold surface polished to 1000# sandpaper to have better physical properties. Harden the cavity and core with 1*2/S136 to enhance the hardness and anti-wearing performance and improve the tool life up to 500k shots; more suitable for mass production. | |||||||
Display diagram
|
