| Categories | Automatic Slitting And Rewinding Machine |
|---|---|
| Place of Origin: | Zhejiang, China |
| Brand Name: | Sunrise |
| Certification: | CE Certificate |
| Packaging Details: | wooden case |
| Supply Ability: | 50 Set/Sets per Month |
| Price: | $4,335.00/sets >=1 sets |
| Model Number: | SR-350Fll |
| MOQ: | 1 sets |
| Payment Terms: | T/T |
| Condition: | New |
| Type: | Slitting Rewinder |
| Computerized: | NO |
| Voltage: | 220v |
| Power: | 2kw |
| Dimension(L*W*H): | 1200*800*1280mm |
| Weight: | 400kg |
| Warranty: | 1 Year, 1 Year, 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Product name: | label slitting and rewinding machine |
| Function: | Slitting Rewinding JUMBO Paper Roll |
| Speed: | 120m/min |
| Usage: | paper, film, foam, plastic |
| Port: | Ningbo/Shanghai |
| Company Info. |
| Wenzhou Sunrise Machinery Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
model | SR-350T | SR-450T |
Slitting speed | 120m/min | 120m/min |
Max. Width | 320mm | 4200mm |
Max. Unwinding diameter | 500mm | 500mm |
Max. rewinding diameter | 480mm | 500mm |
Min. Slitting width | 16mm | 16mm |
Max. Slitting width | 310mm | 410mm |
Accuracy rate | ±0.10mm | ±0.10mm |
Voltage | 380v | 380v |
Main motor power | 2kw | 2kw |
weight | 400kg | 500kg |
Dimension | 1100*800*1280mm | 1200*900*1200mm |

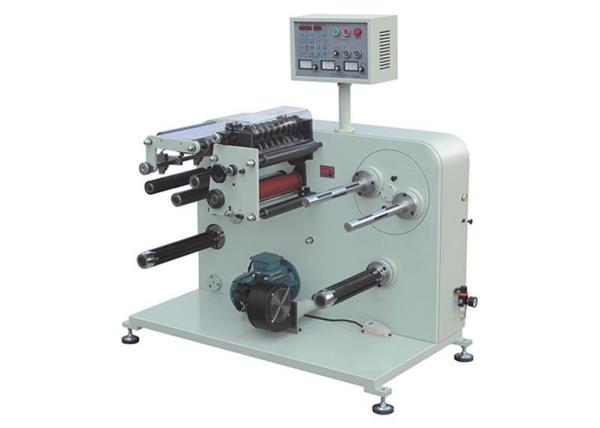

SR-320F/420F is automatic slitting machine, which is a matched machine with die cutting machine, it is suitable to slit narrow paper, it can automatic meter, set length, automatic stop, automatic web-guiding and so on functions. Whole machine is with compact structure,running fast,high efficiency,high accuracy,easy-operation,running stably etc features.
| NO. | Parts Name | Brand |
| 1 | Web-guide eyes | Baideli |
| 2 | Transducer | TAIWAN SHILIN |
| 3 | counter sensor | Germany-sick |
| 4 | Proximity Switch | China |
| 5 | Power Switch | French--Schneider |
| 6 | Relay | China--Chnt |
| 7 | Buttons | French--Schneider |
| 8 | A.C.Contactor | China--Chnt |
Finished Products:
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
|
