| Categories | Universal Automotive Relay |
|---|---|
| Brand Name: | NBC |
| Model Number: | BM94-12VDC-A-b-S |
| Certification: | RoHS |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Price: | negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500k per month |
| Delivery Time: | 4weeks |
| Packaging Details: | standard or customization |
| Keyword: | Universal Automotive Relay |
| Coil input voltage: | DC12V |
| Contact material: | AgSnO2 |
| Application: | automobile industry |
| Contact number: | 1 Form A |
| Dimension LxWxH(mm): | 25.8*25.8*24 |
| Contact rating: | 70A/14VDC |
| Weight(g): | approx.34 |

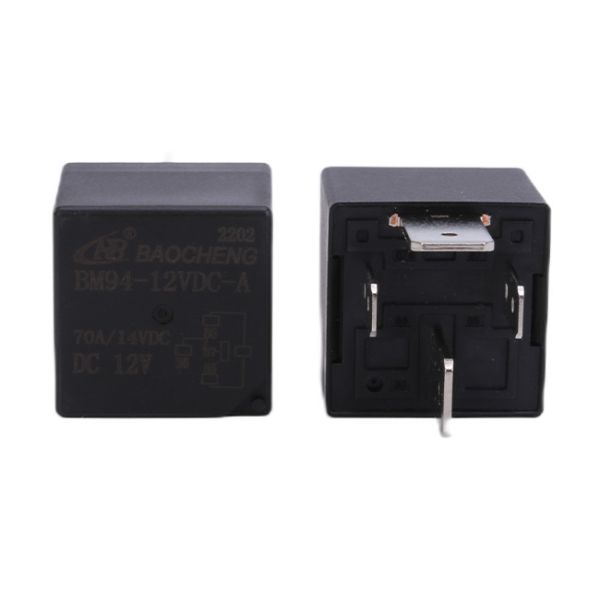

Safety Protection AgSnO2 12 Volt Auto Relay Sensitivity Relay With Fuse
Safety Protection Universal Automotive Relay BM94-12VDC-A-B-S Sensitivity
Universal Automotive Relay Feature:
1. Speed: It means that the protection device should be able to cut
off the short-circuit fault as soon as possible. Its purpose is to
improve system stability, reduce the damage of faulty equipment and
lines, reduce the scope of faults, improve the effect of automatic
reclosing and backup power supply or automatic input of backup
equipment, etc.;
2. Sensitivity: When a metallic short circuit occurs within the
protected range of equipment or lines, the protection device should
have the necessary sensitivity coefficient. Guaranteed to be
removed if there is a fault.
Universal Automotive Relay Introduces:
A relay is an electrical control device, which is an electrical appliance that makes a predetermined step change of the controlled quantity in the electrical output circuit when the change of the input quantity meets the specified requirements. It has an interactive relationship between the control system and the controlled system. Usually used in automated control circuits, it is actually an "automatic switch" that uses a small current to control the operation of a large current. Therefore, it plays the role of automatic adjustment, safety protection, and conversion circuit in the circuit.
Universal Automotive Relay Contact Rating:
| Contact Form: | 1A |
| Contact Material: | AgSnO2 |
| Contact Load Capacity: | NO: 70A/14VDC |
| Max. Switching Current: | 70A |
| Max. Switching Power: | 980W |
| Mechanical Endurance: | 1*10^7 OPS |
| Electrical Endurance: | 1*10^5 OPS |
Universal Automotive Relay FAQ:
Q1: What is the delivery time like?
A1: If we have no stocks, usually have a one-month lead time, If we
have stocks, will ship them in 3-7 days to the destination in
China.
Q2: How about after-sales service?
A2: If have any problems, please feel free to contact us by social
App, phone call, or e-mail, we would like to solve them and do
better for you.
|
