| Categories | Dump Semi Trailer |
|---|---|
| Brand Name: | Fudeng |
| Model Number: | SDFD1704 dump semi trailer |
| Certification: | CE, ISO, CCC, SGS, ADR |
| Place of Origin: | Shandong, China |
| MOQ: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, T/T or negotiate |
| Supply Ability: | 600 sets per month |
| Delivery Time: | 25-40 days after 30% deposit |
| Packaging Details: | Paint and wax spraying |
| Material: | Carbon Steel |
| Usage: | Transport sand, stone and bulk cargo |
| Color: | White, yellow, red, green, blue customized |
| Axle: | Fuwa or Bpw or Chinese brand axle |
| Suspension: | Mechanical or air suspension |
| Capacity: | 40-80 ton available |
| Feature: | hyva hydraulic cyclinder |
| Load capacity: | 50 ton to 80 ton |

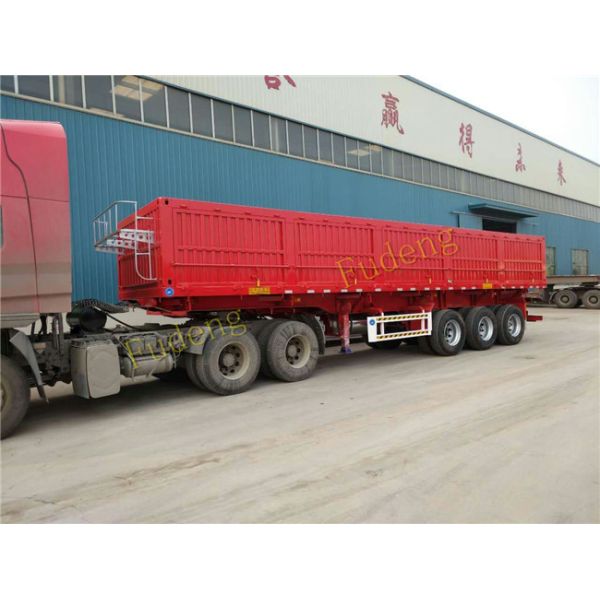

The Fudeng 60 ton side tipper trailer designed specifically for the needs of grain, sand , small stone, offering a high quality tipping trailer that maximizes payload, at a competitive price.
Fudeng dump trailer is available in various sizes from 8m to 13m long and to a maximum height of 3 to 4m suit your application.
| Side Tipping Trailer Specifications | |
|---|---|
| Body | |
| Dimension | 11000*2500*3300mm |
| Payload | 70000 KGS |
| Box dimension inside | 10900*2400*1600mm |
| Box thickness | Side 3mm, plate 3mm |
| Hydraulic cylinder | 5 side tipping cylinder +1 shifting cylinder, can unload both sides |
| Tare weight | About 11000kg |
| Chassis | |
| Frame | Welding design or Special design I beam, connected by bolts and nuts, Q345B steel material |
| Frame Beam | Upper plate is 14mm and lower is 16 mm, middle is 8 mm. height is 500 mm |
| Axle | 4 axles, 13T American type FD brand |
| Landing Gear | Standard 28T JOST brand |
| King Pin | 2.00(5.0) or 3.5(9.0) JOST brand |
| Suspension | Mechanical suspension |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | 8 air chamber, 4 axles synchronization WABCO brand |
| Rim | 8.25-20, 8.25-22.5, |
| Tire | 11.00 R 20, 12.00 R 22.5 |
| ABS | KEMI brand |
| Accessories | One standard tool box |
| Voltage | 24V |
| Packing and shipping | |
| Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive prime, 1coats of final paint |
| Shipping Terms | By Bulk Cargo/RORO |
Designed to maximise your profits with a low tare weight and high payload, Fudeng trailers come with a two year warranty and backed by a international trailer dealer network.
|
